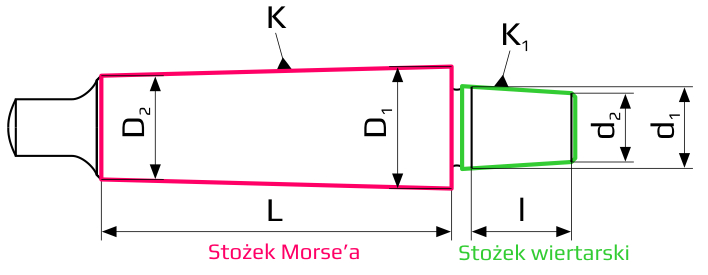

Rozmiary stożków Morse i uchwytów wiertarskich Jacobs oraz DIN 238
Stożek typu B (DIN 238)
| Stożek (K1) | d1 | d2 | l | |||
|---|---|---|---|---|---|---|
| mm | cal | mm | cal | mm | cal | |
| B10 | 10,094 | 0.3974" | 9,4 | 0.3701" | 14,5 | 0.5709" |
| B12 | 12,065 | 0.4750" | 11,1 | 0.4370" | 18,5 | 0.7283" |
| B16 | 15,733 | 0.6194" | 14,5 | 0.5709" | 24,0 | 0.9449" |
| B18 | 17,780 | 0.7000" | 16,2 | 0.6378" | 32,0 | 1.2598" |
| B22 | 21,793 | 0.8580" | 19,8 | 0.7795" | 40,5 | 1.5946" |
| B24 | 23,825 | 0.9380" | 21,3 | 0.8386" | 50,5 | 1.9882" |
Stożek Jacobs
| Stożek (K1) | d1 | d2 | l | |||
|---|---|---|---|---|---|---|
| mm | cal | mm | cal | mm | cal | |
| J0 | 6,35 | 0.2500" | 5,80 | 0.2284" | 11,11 | 0.4375" |
| J1 | 9,75 | 0.3840" | 8,47 | 0.3334" | 16,67 | 0.6563" |
| J2 | 14,20 | 0.5590" | 12,39 | 0.4876" | 22,23 | 0.8750" |
| J2 krótki | 13,94 | 0.5488" | 12,39 | 0.4876" | 19,05 | 0.7500" |
| J2 ½ | 17,20 | 0.677" | 15,88 | 0.625" | 26,80 | 1.055" |
| J3 | 20,60 | 0.8110" | 18,95 | 0.7461" | 30,96 | 1.2188" |
| J4 | 28,55 | 1.1240" | 26,34 | 1.0372" | 42,07 | 1.6563" |
| J5 | 35,89 | 1.4130" | 33,43 | 1.3161" | 47,63 | 1.8750" |
| J6 | 17,17 | 0.6760" | 15,85 | 0.6241" | 25,40 | 1.0000" |
| J33 | 15,85 | 0.6240" | 14,23 | 0.5604" | 25,40 | 1.0000" |
Stożek Morse'a (DIN 228)
| Stożek (K1) | D1 | D2 | L | |||
|---|---|---|---|---|---|---|
| mm | cal | mm | cal | mm | cal | |
| M0 | 9,0448 | 0.3561" | 6,400 | 0.2520" | 50,80 | 2.00" |
| M1 | 12,065 | 0.4750" | 9,373 | 0.3690" | 54,10 | 2.13" |
| M2 | 17,780 | 0.7000" | 14,529 | 0.5720" | 65,02 | 2.56" |
| M3 | 23,825 | 0.9380" | 19,761 | 0.7780" | 81,06 | 3.19" |
| M4 | 31,267 | 1.2310" | 25,908 | 1.0200" | 103,12 | 4.06" |
| M5 | 44,399 | 1.7480" | 37,465 | 1.4750" | 131,83 | 5.19" |
| M6 | 63,348 | 2.4940" | 53,746 | 2.1160" | 184,15 | 7.25" |
| M7 | 83,056 | 3.2700" | 69,848 | 2.7500" | 253,995 | 10.00" |
