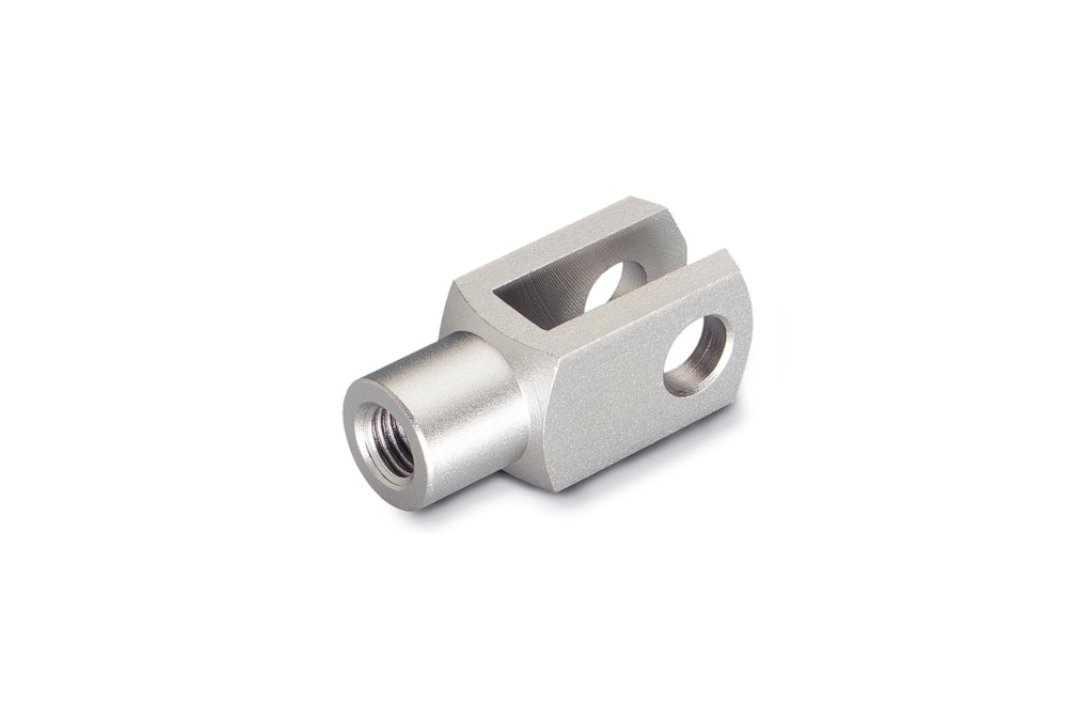

Opis produktu
W艂a艣ciwo艣ci i zastosowanie:
- Wykonanie przegubu ze stali nierdzewnej AISI 303 NI, bez pow艂oki
- Wytrzyma艂y na rozci膮ganie - klasa V (500 N/mm2)
Tabela dost臋pnych rozmiar贸w i modeli:
 |
|||||||||
| Oznaczenie | d1 H9/h11 | l1 | d2 | a | b | d3 | l2 | l3 | l4 |
|---|---|---|---|---|---|---|---|---|---|
| DIN 71752-4-8-M4-NI | 4 | 8 | M 4 | 8 | 4 | 8 | 16 | 21 | 6 |
| DIN 71752-4-16-M4-NI | 4 | 16 | M 4 | 8 | 4 | 8 | 24 | 29 | 6 |
| DIN 71752-5-10-M5-NI | 5 | 10 | M 5 | 10 | 5 | 9 | 20 | 26 | 7.5 |
| DIN 71752-5-20-M5-NI | 5 | 20 | M 5 | 10 | 5 | 9 | 30 | 36 | 7.5 |
| DIN 71752-6-12-M6-NI | 6 | 12 | M 6 | 12 | 6 | 10 | 24 | 31 | 9 |
| DIN 71752-6-24-M6-NI | 6 | 24 | M 6 | 12 | 6 | 10 | 36 | 43 | 9 |
| DIN 71752-8-16-M8-NI | 8 | 16 | M 8 | 16 | 8 | 14 | 32 | 42 | 12 |
| DIN 71752-8-32-M8-NI | 8 | 32 | M 8 | 16 | 8 | 14 | 48 | 58 | 12 |
| DIN 71752-10-20-M10-NI | 10 | 20 | M 10 | 20 | 10 | 18 | 40 | 52 | 15 |
| DIN 71752-10-40-M10-NI | 10 | 40 | M 10 | 20 | 10 | 18 | 60 | 72 | 15 |
| DIN 71752-12-24-M12-NI | 12 | 24 | M 12 | 24 | 12 | 20 | 48 | 62 | 18 |
| DIN 71752-12-48-M12-NI | 12 | 48 | M 12 | 24 | 12 | 20 | 72 | 86 | 18 |
| DIN 71752-14-28-M14-NI | 14 | 28 | M 14 | 28 | 14 | 24 | 56 | 72 | 22.5 |
| DIN 71752-14-56-M14-NI | 14 | 56 | M 14 | 28 | 14 | 24 | 85 | 101 | 22.5 |
| DIN 71752-16-32-M16-NI | 16 | 32 | M 16 | 32 | 16 | 26 | 64 | 83 | 24 |
| DIN 71752-16-64-M16-NI | 16 | 64 | M 16 | 32 | 16 | 26 | 96 | 115 | 24 |
| DIN 71752-20-40-M20-NI | 20 | 40 | M 20 | 40 | 20 | 34 | 80 | 105 | 30 |
Dost臋pno艣ci s膮 informacyjne na podstawie danych z firmy ELESA+Ganter i mog膮 r贸偶ni膰 si臋 od rzeczywistego stanu. Przed zakupem prosimy o kontakt w celu potwierdzenia aktualnego stanu magazynowego.
