Opis produktu
Właściwości i zastosowanie:

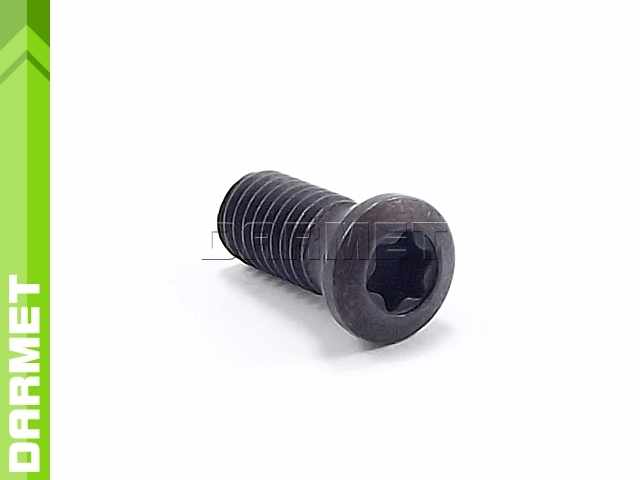

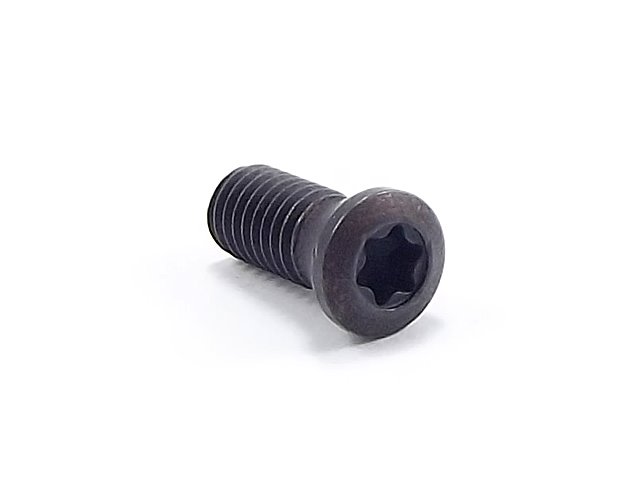

- Śruba mocująca SSSM do mocowania płytek wieloostrzowych w oprawkach typu S
- Płytka wieloostrzowa przykręcona poprzez profilowany otwór za pomocą klucza Torx
Dane techniczne:
| Parametr | Wartość |
|---|---|
| Gwint | M4 |
| Długość całkowita śruby | 8 mm |
System mocowania S
| Śruba mocująca SSSM4X8 pasuje do noży tokarskich składanych | |
|---|---|
| zewnętrznych: | wewnętrznych: |
| SCACR/L 1212F09 | S12M-SCLCR/L09 |
| SCLCR/L 1212F09 | S16Q-SCLCR/L09 |
| SCLCR/L 1616H09 | S20Q-SCLCR/L09 |
| SCLCR/L 2020K09 | S25R-SCLCR/L09 |
| SDACR/L 1212F11 | S16Q-SCLCR/L09H17 |
| SDACR/L 1616H11 | S20Q-SDQCR/L11 |
| SDJCR/L 1616H11 | S25R-SDQCR/L11 |
| SDJCR/L 2020K11 | S20Q-SDUCR/L11 |
| SDJCR/L 2525M11 | S25R-SDUCR/L11 |
| SDJCR/L 3225P11 | S20Q-SDZCR/L11 |
| SDJCR/L 3232P11 | S25R-SDZCR/L11 |
| SDNCN 1212H11 | S32S-SDZCR/L11 |
| SDNCN 1616H11 | S40T-SDZCR/L11 |
| SDNCN 2020K11 | S12M-SSKCR/L09 |
| SDNCN 2525M11 | S16Q-SSKCR/L09 |
| SVJCR/L 1616H16 | S20Q-SSKCR/L09 |
| SVJCR/L 2020K16 | S25R-SSKCR/L09 |
| SVJCR/L 2525M16 | S12M-SSSCR/L09 |
| SVJCR/L 3225P16 | S16Q-SSSCR/L09 |
| SVJCR/L 3232P16 | S20Q-SSSCR/L09 |
| SVJBR/L 1616H16 | S25R-SSSCR/L09 |
| SVJBR/L 2020K16 | S20Q-STFCR/L16 |
| SVJBR/L 2525M16 | S25R-STFCR/L16 |
| SVJBR/L 3225P16 | S32S-STFCR/L16 |
| SVJBR/L 3232P16 | S40T-STFCR/L16 |
| SVABR/L 1616H16 | S20Q-STWCR/L16 |
| SVABR/L 2020K16 | S25R-STWCR/L16 |
| SVABR/L 2525M16 | S20Q-STUCR/L16 |
| SVACR/L 1616H16 | S25R-STUCR/L16 |
| SVACR/L 2020K16 | S32S-STUCR/L16 |
| SVACR/L 2525M16 | S40T-STUCR/L16 |
| SVVBN 1616H16 | S20Q-SVQCR/L16 |
| SVVBN 2020K16 | S25S-SVQCR/L16 |
| SVVBN 2525M16 | S32S-SVQCR/L16 |
| SVVBN 3225P16 | S40T-SVQCR/L16 |
| SVVBN 3232P16 | S20Q-SVQBR/L16 |
| SVVCN 1616H16 | S25R-SVQBR/L16 |
| SVVCN 2020K16 | S32S-SVQBR/L16 |
| SVVCN 2525M16 | S40T-SVQBR/L16 |
| SVVCN 3225P16 | S20Q-SVUCR/L16 |
| SVVCN 3232P16 | S25R-SVUCR/L16 |
| SSBCR/L 1212F09 | S32S-SVUCR/L16 |
| SSBCR/L 1616H09 | S40T-SVUCR/L16 |
| SSDCN 1212F09 | S20Q-SVWCR/L16 |
| SSDCN 1616H09 | S25R-SVWCR/L16 |
| SSDCN 2020K09 | S32S-SVWCR/L16 |
| SSDCN 2525M09 | S40T-SVWCR/L16 |
| SSKCR/L 1616H09 | S20Q-SVXCR/L16 |
| SSKCR/L 2020K09 | S25R-SVXCR/L16 |
| SSSCR/L 1616H09 | S32S-SVXCR/L16 |
| SSSCR/L 2020K09 | S40T-SVXCR/L16 |
| STFCR/L 1616H16 | S25R-SVZCR/L16 |
| STFCR/L 2020K16 | S32S-SVZCR/L16 |
| STFCR/L 2525M16 | S40T-SVZCR/L16 |
| STGCR/L 2020K16 | |
| STGCR/L 2525M16 | |
| STTCR/L 1616H16 | |
| STTCR/L 2020K16 | |
| SWACR/L 2020K08 | |
