Opis produktu
Właściwości i zastosowanie:

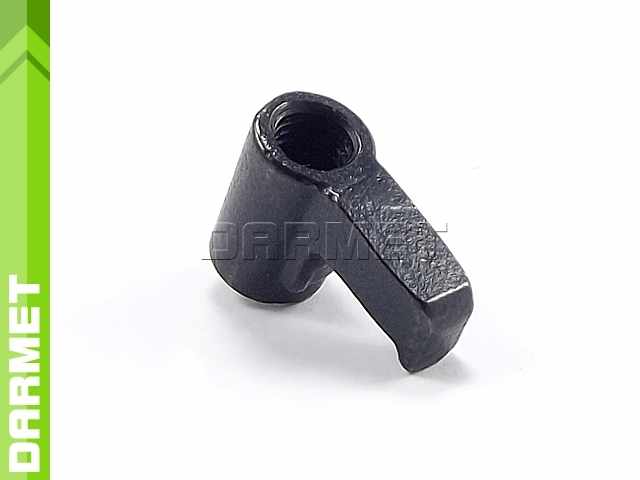

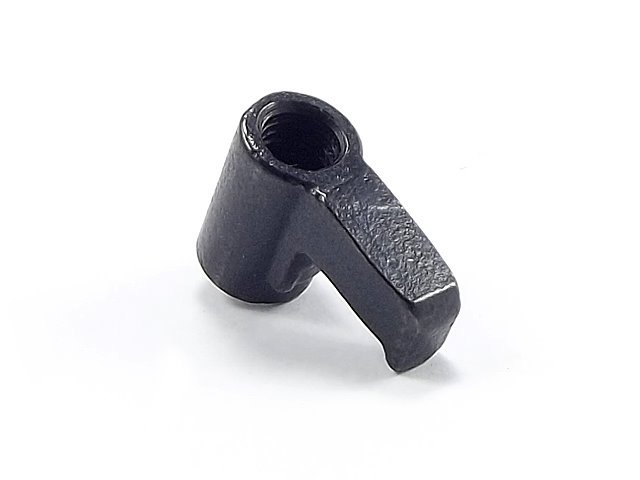

- Łapa mocująca CPM dociska płytkę skrawającą w gnieździe oprawki nożowej
- Dokręcana jest za pomocą śruby mocującej SCM
Dane techniczne:
| Parametr | Wartość | Jedn. |
|---|---|---|
| Gwint | M6 |
System mocowania M
| Łapa mocująca CPM1814 pasuje do noży tokarskich składanych | |
|---|---|
| zewnętrznych: | wewnętrznych: |
| MCLNR/L 1616H12 | S32S-MCKNR/L12 |
| MCLNR/L 2020K12 | S40T-MCKNR/L12 |
| MCLNR/L 2525M12 | S50U-MCKNR/L12 |
| MCLNR/L 3225P12 | S32S-MCLNR/L12 |
| MCLNR/L 3232P12 | S40T-MCLNR/L12 |
| MCBNR/L 2020K12 | S50U-MCLNR/L12 |
| MCBNR/L 2525M12 | S25R-MSKNR/L12 |
| MCBNR/L 3225P12 | S32S-MSKNR/L12 |
| MCKNR/L 2020K12 | S40T-MSKNR/L12 |
| MCKNR/L 2525M12 | S25R-MVUNR/L16 |
| MCKNR/L 3225P12 | S32S-MVUNR/L16 |
| MDJNR/L 1616H11 | S40T-MVUNR/L16 |
| MDJNR/L 2020K11 | S25R-MVWNR/L16 |
| MDJNR/L 2525M11 | S32S-MVWNR/L16 |
| MDPNN 1616H11 | S40T-MVWNR/L16 |
| MDPNN 2020K11 | S25R-MWLNR/L08 |
| MDPNN 2525M11 | S32S-MWLNR/L08 |
| MDQNR/L 1616H11 | S40T-MWLNR/L08 |
| MDQNR/L 2020K11 | S25R-MTFNR/L16 |
| MDQNR/L 2525M11 | S32S-MTFNR/L16 |
| MSBNR/L 2020K12 | S40T-MTFNR/L16 |
| MSBNR/L 2525M12 | S25R-MTQNR/L16 |
| MSBNR/L 3225P12 | S32S-MTQNR/L16 |
| MSRNR/L 2020K12 | S40T-MTQNR/L16 |
| MSRNR/L 2525M12 | S25R-MTJNR/L16 |
| MSRNR/L 3225P12 | S25R-MTUNR/L16 |
| MSKNR/L 2020K12 | S32S-MTUNR/L16 |
| MSKNR/L 2525M12 | S40T-MTUNR/L16 |
| MSKNR/L 3225P12 | S25R-MTWNR/L16 |
| MSDNN 2020K12 | S32S-MTWNR/L16 |
| MSDNN 2525M12 | S40T-MTWNR/L16 |
| MSDNN 3225P12 | |
| MSSNR/L 2020K12 | |
| MSSNR/L 2525M12 | |
| MSSNR/L 3225P12 | |
| MSSNR/L 3232P12 | |
| MTGNR/L 2020K16 | |
| MTGNR/L 2525M16 | |
| MTGNR/L 3225P16 | |
| MTJNR/L 1616H16 | |
| MTJNR/L 2020K16 | |
| MTJNR/L 2525M16 | |
| MTJNR/L 3225P16 | |
| MTJNR/L 3232P16 | |
| MTJNR/L(B) 1616H16B | |
| MTJNR/L(B) 2020K16B | |
| MTJNR/L(B) 2525M16B | |
| MTJNR/L(B) 3225P16B | |
| MTJNR/L(B) 3232P16B | |
| MTFNR/L 1616H16 | |
| MTFNR/L 2020K16 | |
| MTFNR/L 2525M16 | |
| MTFNR/L 3225P16 | |
| MTFNR/L 3232P16 | |
| MTQNR/L 2020K16 | |
| MTQNR/L 2525M16 | |
| MTQNR/L 3225P16 | |
| MTENN 1616H16 | |
| MTENN 2020K16 | |
| MTENN 2525M16 | |
| MTENN 3232P16 | |
| MWLNR/L 2020K06 | |
| MWLNR/L 2525M06 | |
| MWLNR/L 2020K08 | |
| MWLNR/L 2525M08 | |
| MWLNR/L 3225P08 | |
| MWLNR/L 3232P08 | |
| MRGNR/L 2020K12 | |
| MRGNR/L 2525M12 | |
| MRGNR/L 3225P12 | |
| MRGNR/L 3232P12 | |
| MRDNN 2020K12 | |
| MRDNN 2525M12 | |
| MRDNN 3225P12 | |
| MRDNN 3232P12 | |
