Opis produktu
Właściwości i zastosowanie:

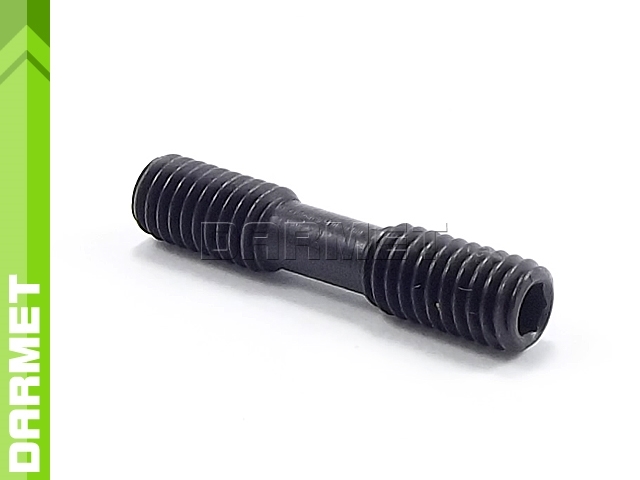

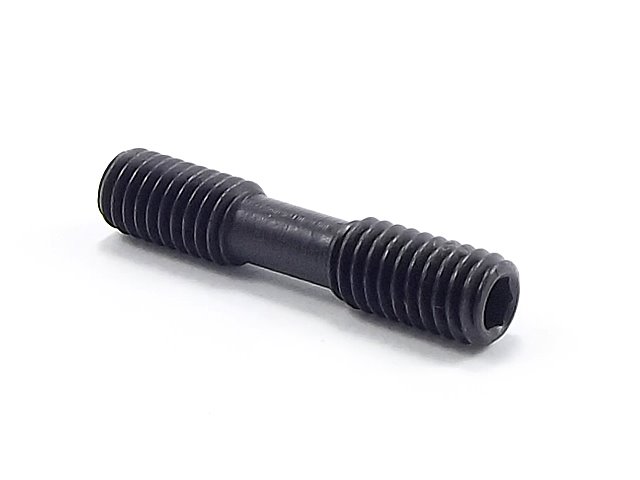

- Śruba mocująca SCM łączy docisk CPM z trzonkiem noża tokarskiego
- Wkręcana za pomocą klucza imbusowego.
- Dwa gwinty M6: prawy i lewy.
Dane techniczne:
| Parametr | Wartość |
|---|---|
| Gwint | M6 |
| Długość całkowita śruby | 25 mm |
System mocowania M
| Śruba mocująca SCM0625 pasuje do noży tokarskich składanych | |
|---|---|
| zewnętrznych: | wewnętrznych: |
| MCLNR/L 1616H12 | S32S-MCKNR/L12 |
| MCLNR/L 2020K12 | S40T-MCKNR/L12 |
| MCBNR/L 2020K12 | S50U-MCKNR/L12 |
| MCKNR/L 2020K12 | S25R-MCLNR/L12 |
| MDJNR/L 1616H11 | S32S-MCLNR/L12 |
| S40T-MCLNR/L12 | |
| MDPNN 1616H11 | S50U-MCLNR/L12 |
| S16Q-MDQNR/L15 | |
| MDQNR/L 1616H11 | S20Q-MDQNR/L15 |
| S25R-MDQNR/L15 | |
| MSBNR/L 2020K12 | S32S-MDQNR/L15 |
| MSRNR/L 2020K12 | S40T-MDQNR/L15 |
| MSKNR/L 2020K12 | S20Q-MDUNR/L15 |
| MSDNN 2020K12 | S25R-MDUNR/L15 |
| MSSNR/L 2020K12 | S32S-MDUNR/L15 |
| MTGNR/L 2020K16 | S40T-MDUNR/L15 |
| S25R-MDZNR/L15 | |
| S32S-MDZNR/L15 | |
| MTFNR/L 1616H16 | S40T-MDZNR/L15 |
| MTFNR/L 2020K16 | S25R-MSKNR/L12 |
| MTQNR/L 2020K16 | S32S-MSKNR/L12 |
| MTENN 1616H16 | S40T-MSKNR/L12 |
| MTENN 2020K16 | S25R-MVQNR/L16 |
| MVJNR/L 1616H16 | S32S-MVQNR/L16 |
| MVJNR/L 2020K16 | S40T-MVQNR/L16 |
| MVVNN 2020K16 | S25R-MVUNR/L16 |
| MVUNR/L 1616H16 | S32S-MVUNR/L16 |
| MVUNR/L 2020K16 | S40T-MVUNR/L16 |
| MVQNR/L 1616H16 | S25R-MVWNR/L16 |
| MVQNR/L 2020K16 | S32S-MVWNR/L16 |
| MWLNR/L 2020K06 | S40T-MVWNR/L16 |
| MWLNR/L 2020K08 | S25R-MVXNR/L16 |
| MRGNR/L 2020K12 | S32S-MVXNR/L16 |
| MRDNN 2020K12 | S40T-MVXNR/L16 |
| S25R-MWLNR/L08 | |
| S32S-MWLNR/L08 | |
| S40T-MWLNR/L08 | |
| S25R-MTFNR/L16 | |
| S32S-MTFNR/L16 | |
| S40T-MTFNR/L16 | |
| S25R-MTQNR/L16 | |
| S32S-MTQNR/L16 | |
| S40T-MTQNR/L16 | |
| S25R-MTJNR/L16 | |
| S25R-MTUNR/L16 | |
| S32S-MTUNR/L16 | |
| S40T-MTUNR/L16 | |
| S25R-MTWNR/L16 | |
| S32S-MTWNR/L16 | |
| S40T-MTWNR/L16 | |
